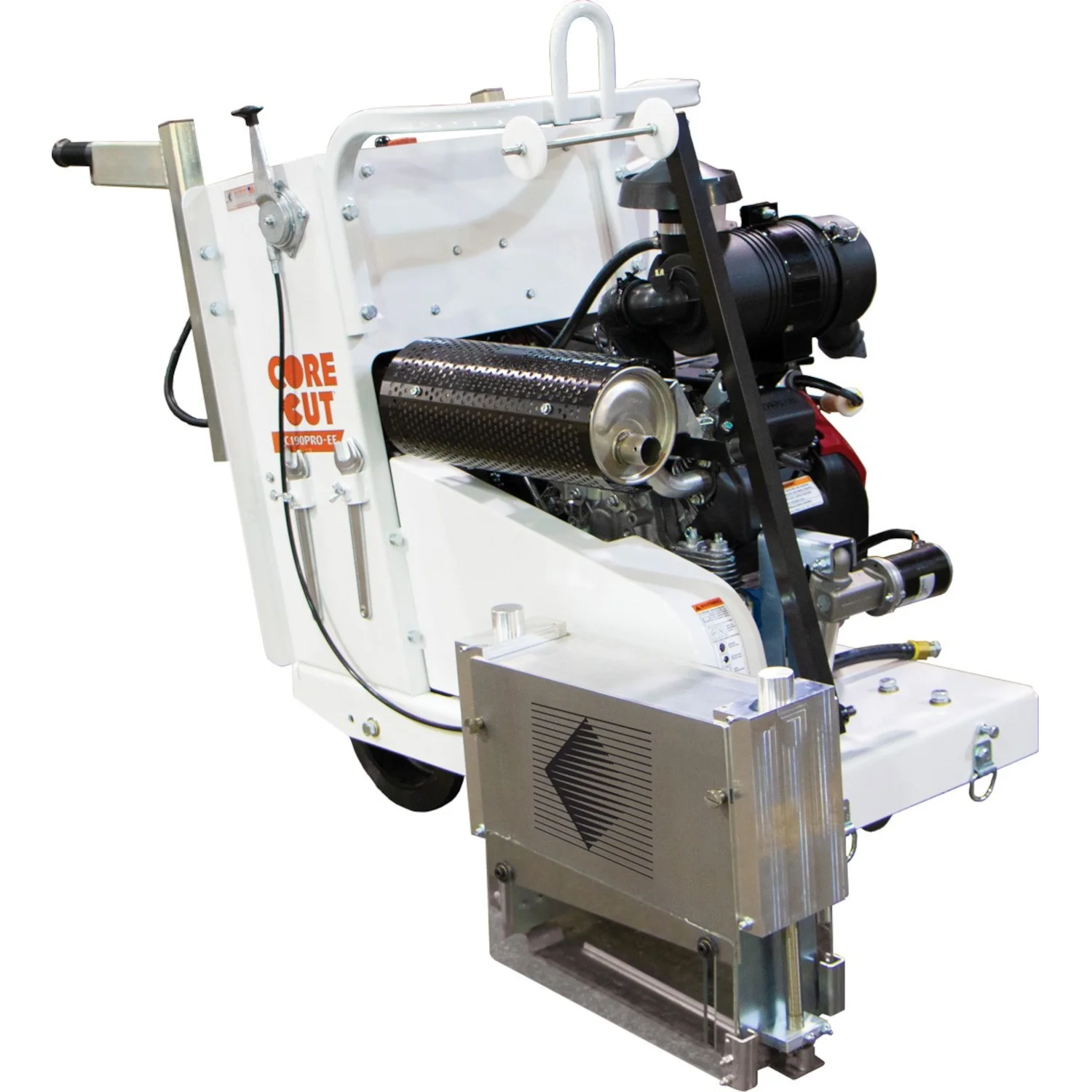

• Core Cut gas soft cut concrete saw front view
  • Soft Cut Concrete Saw - Core Cut - Gas - 3.625" Cut, 14" Blade
  • Soft Cut Concrete Saw - Core Cut - Gas - 3.625" Cut, 14" Blade
  • Soft Cut Concrete Saw - Core Cut - Gas - 3.625" Cut, 14" Blade
  • Soft Cut Concrete Saw - Core Cut - Gas - 3.625" Cut, 14" Blade
  • Soft Cut Concrete Saw - Core Cut - Gas - 3.625" Cut, 14" Blade
  • Soft Cut Concrete Saw - Core Cut - Gas - 3.625" Cut, 14" Blade
  • Soft Cut Concrete Saw - Core Cut - Gas - 3.625" Cut, 14" Blade
  • Pay No Sales Tax
1 10

Soft Cut Concrete Saw - Core Cut - Gas - 3.625" Cut, 14" Blade

Soft Cut Concrete Saw - Core Cut - Gas - 3.625" Cut, 14" Blade

Diamond Products

SKU: CC190PRO-EE

$16,773.45
$19,884.00 $16,773.45
Save $3,110.55 Sold out
Shipping calculated at checkout.
🇺🇸 In Stock Delivery Truck Delivery in 3 to 5 business days.
Secure checkout • Easy returns • BBB Accredited • Google Trusted Store

Questions? Call us (855) 281-1918

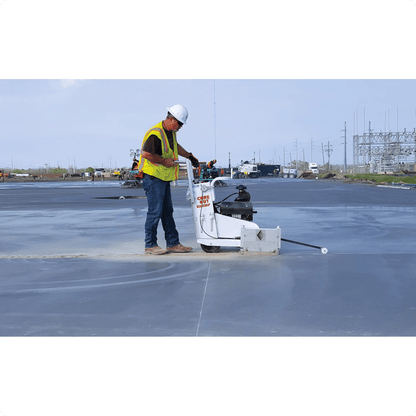

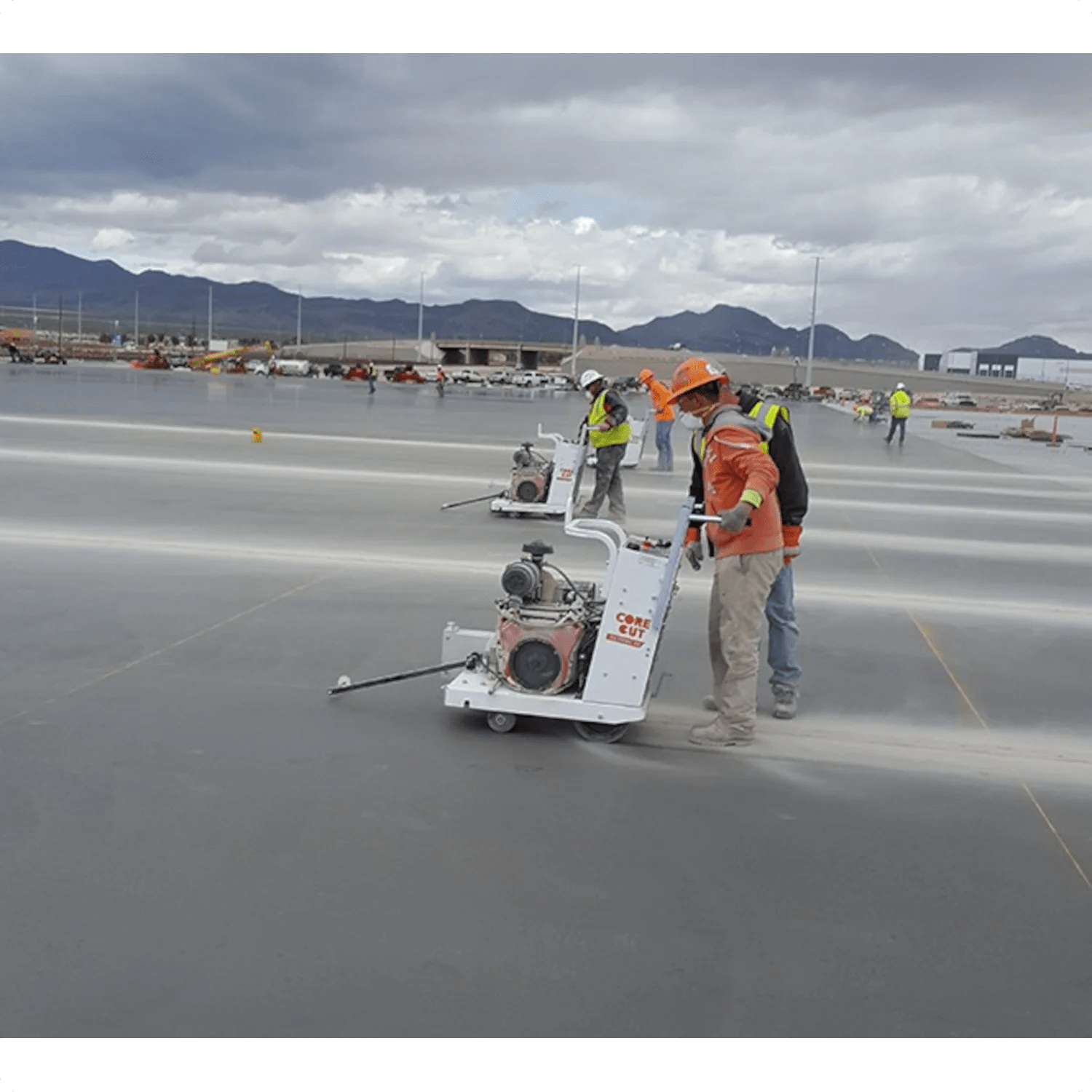

Make clean, early-entry cuts in green concrete with the Core Cut Soft Cut Saw. This gas-powered saw features a 14" blade and reaches up to 3.625" cutting depth, making it perfect for joints, slabs, and crack control.

Built for durability and precision, it allows you to cut concrete before it fully cures, reducing the risk of cracks and saving time on the job. The powerful gas engine makes it ideal for outdoor work where electric access is limited.

Easy to operate and tough enough for daily use, it’s the tool of choice for pros who need reliable early-entry cutting performance.

  • Gas-powered for job site flexibility
  • 14" blade with 3.625" max cutting depth
  • Ideal for soft cuts in green concrete

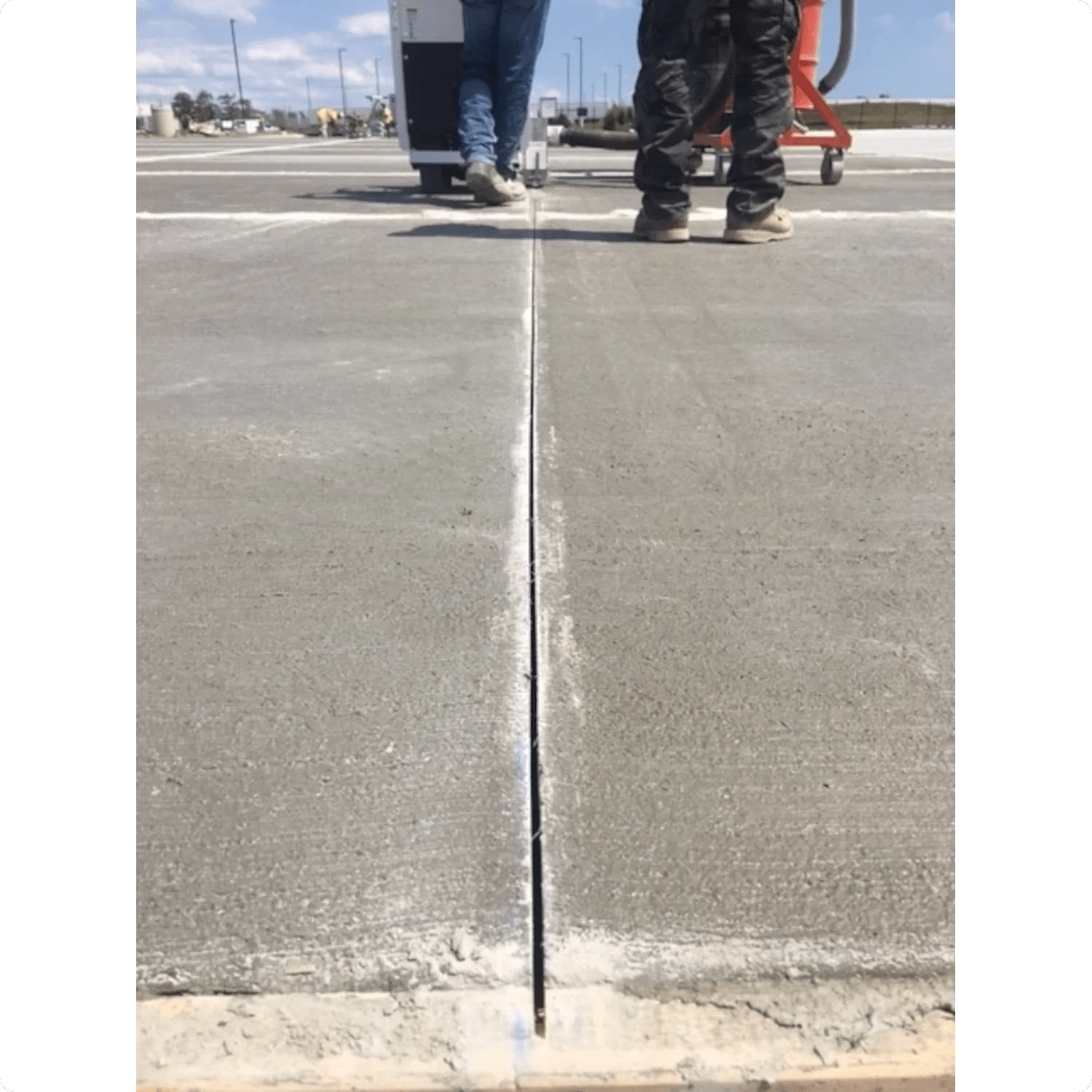

  • Reduces random cracking by controlling joints
  • Durable frame and smooth handling

Start early. Cut clean. Built for fast, accurate results.

View full details

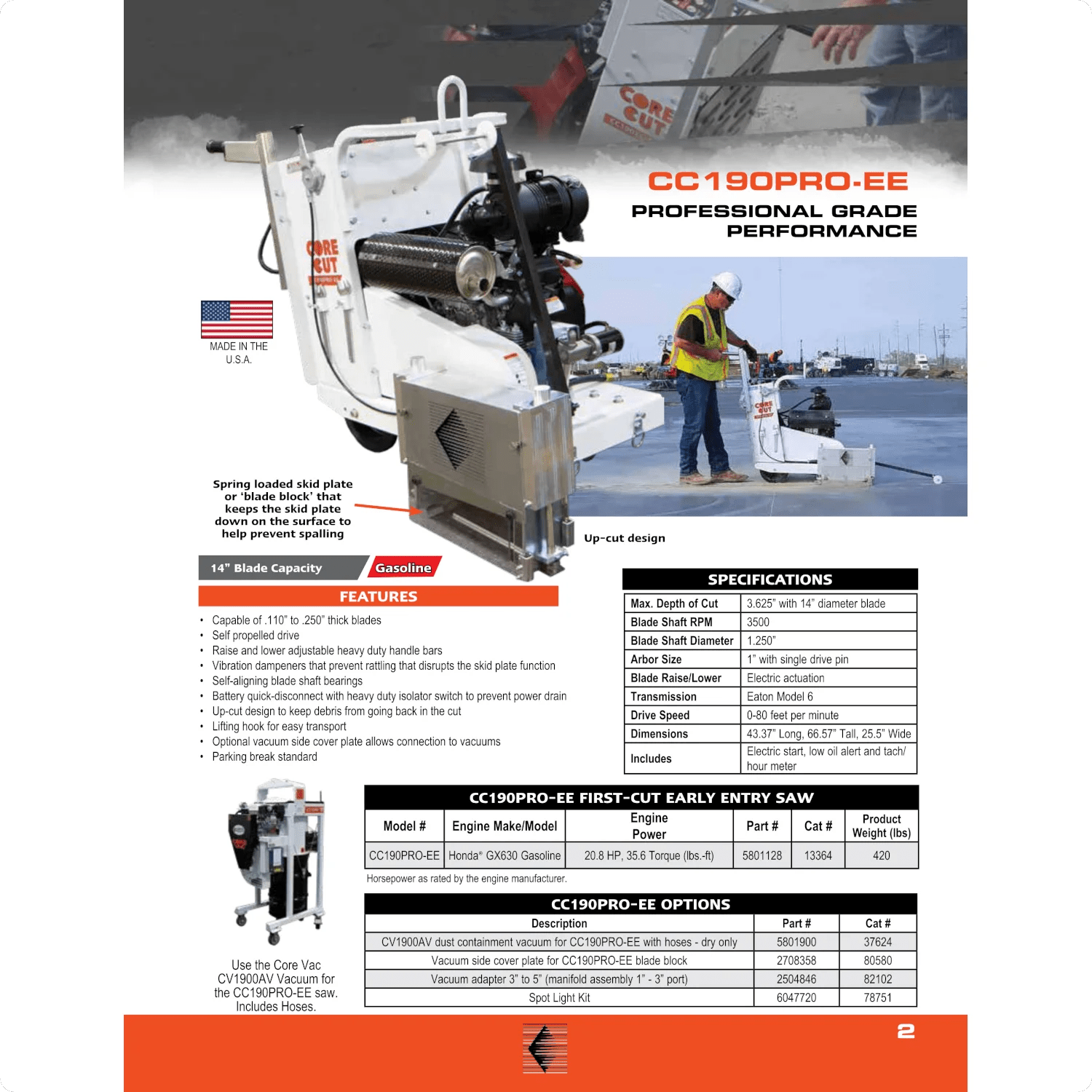

Product Specifications

General

Manufacturer
Diamond Products - Core Cut
Model
CC190PRO-EE

Power & Performance

Engine/Motor
Honda GX630
Horse Power
20.8HP
Power Source
Gas
Torque
35.6 (lbs/ft)
Self Propelled Drive
Yes
Speed
0-80 feet per minute
Transmission
Eaton Model 6
Electric Start
Yes
Low Oil Alert
Yes
Tach/Hour Meter
Yes

Cutting Specifications

Max Blade Size
14"
Max Blade Cutting Depth
ꜜ3.625"
Cut Direction
Up Cut
Blade Shaft RPM
3500
Blade Arbor Size
1" with single drive pin
Blade Width
0.110" - 0.250"
Depth Adjustment
Electric actuator
Blade Flange
Self-aligning blade shaft bearings
Blade Included
Not specified

Maneuverability

Wheel Material
Not specified
Front Wheels
Not specified
Rear Wheels
Not specified
Straight Cut Wheels
Not specified
Transport
Lifting hook

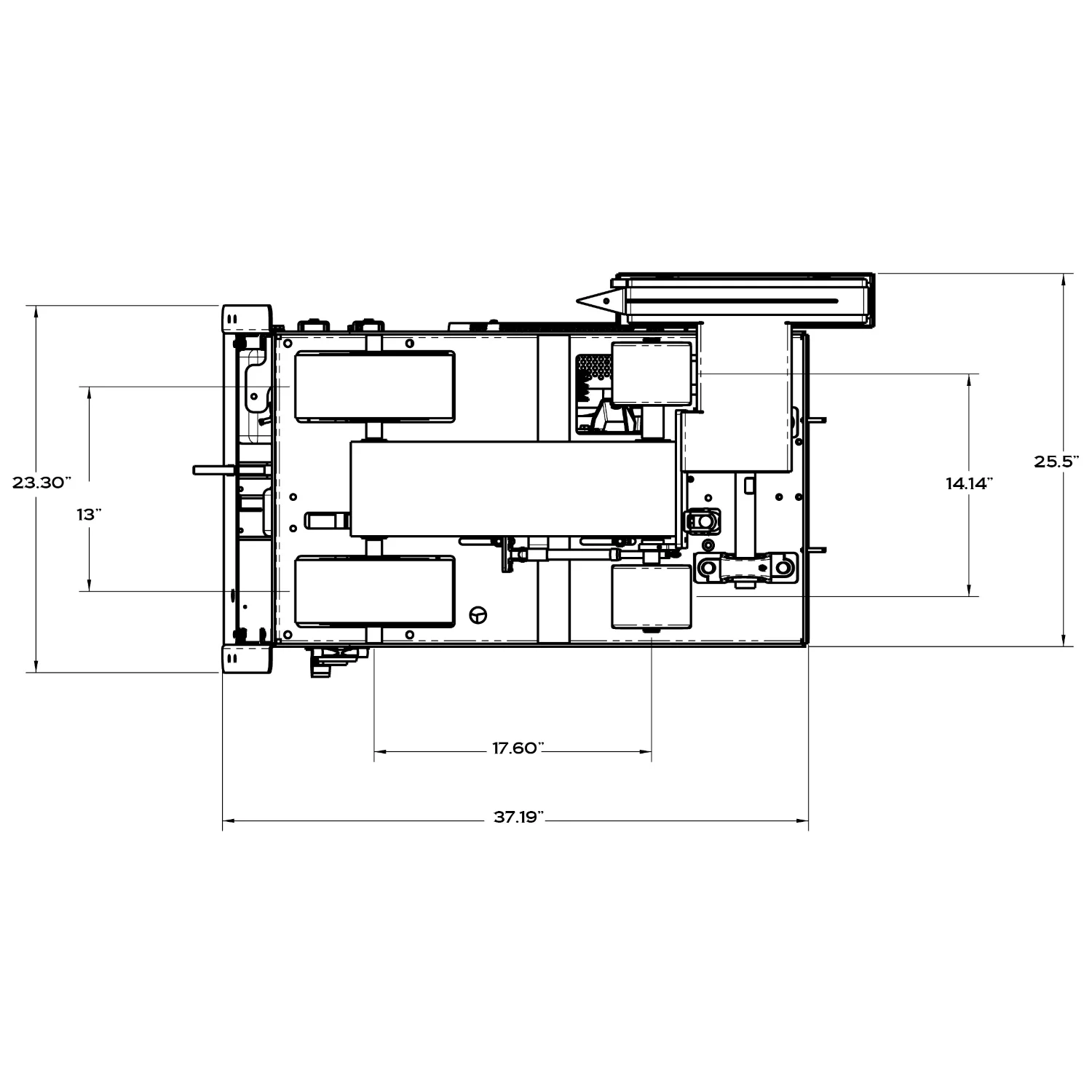

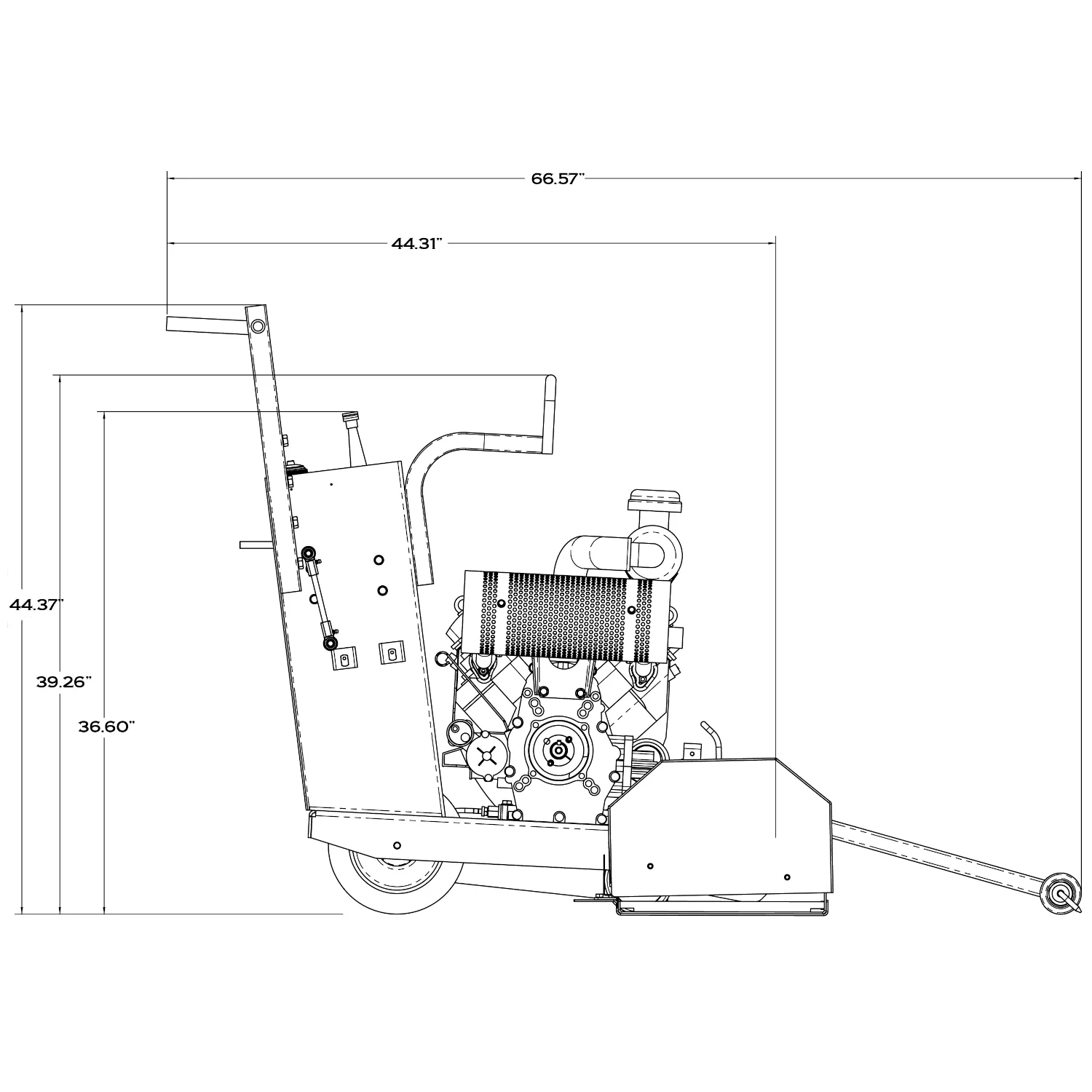

Weight/Dimensions

Dry Weight (lbs)
420
Operating Weight (lbs)
Not specified
Length
43.37"
Width
25.5"
Height
66.57"

Safety and Compliance

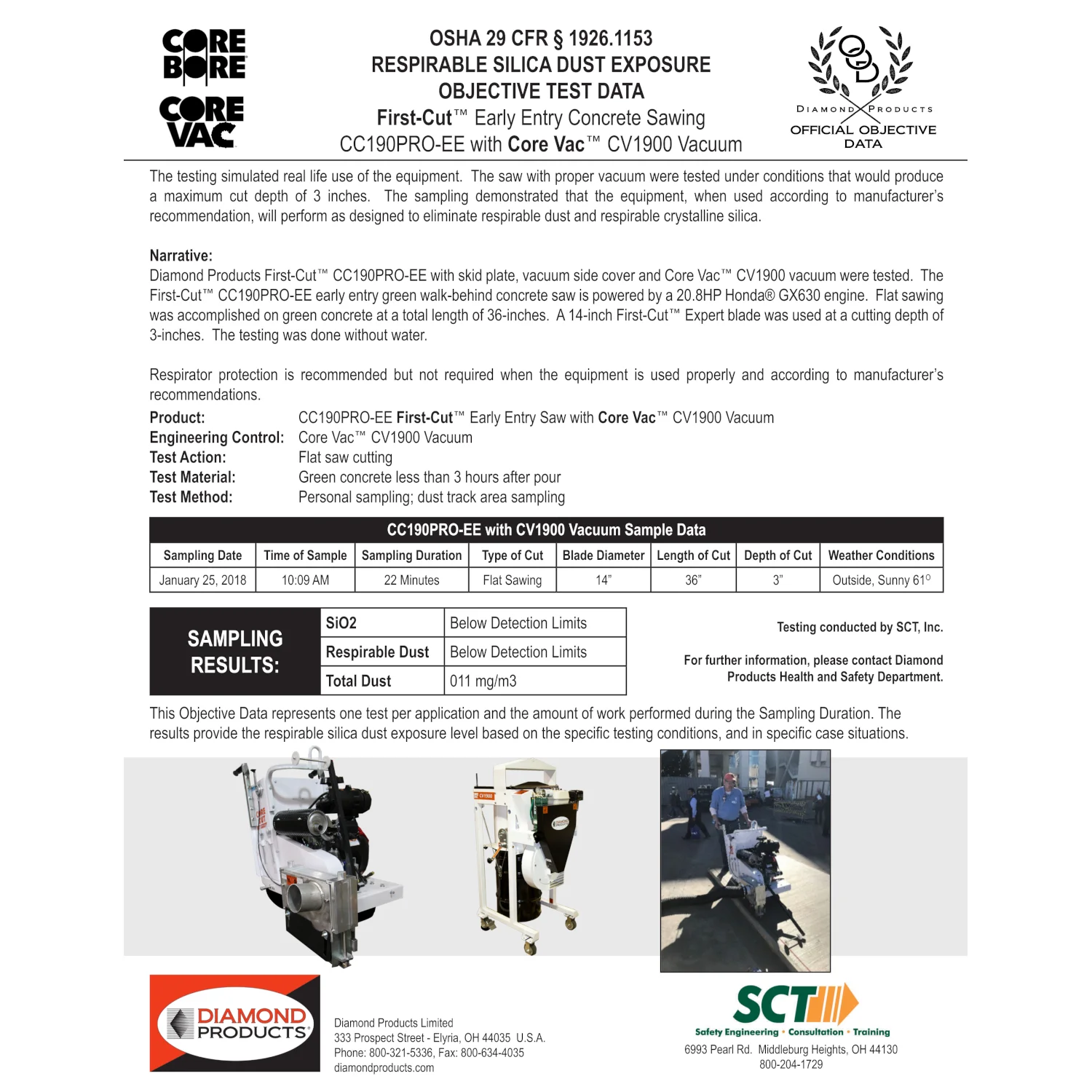

Dust Suppression
Optional vacuum side cover plate

Warranty

Product Warranty
Not specified
Engine Warranty
Not specified

Additional Features

Handle Design
Heavy duty, adjustable, raise/lower
Battery Access
Easy access with heavy duty isolator switch
