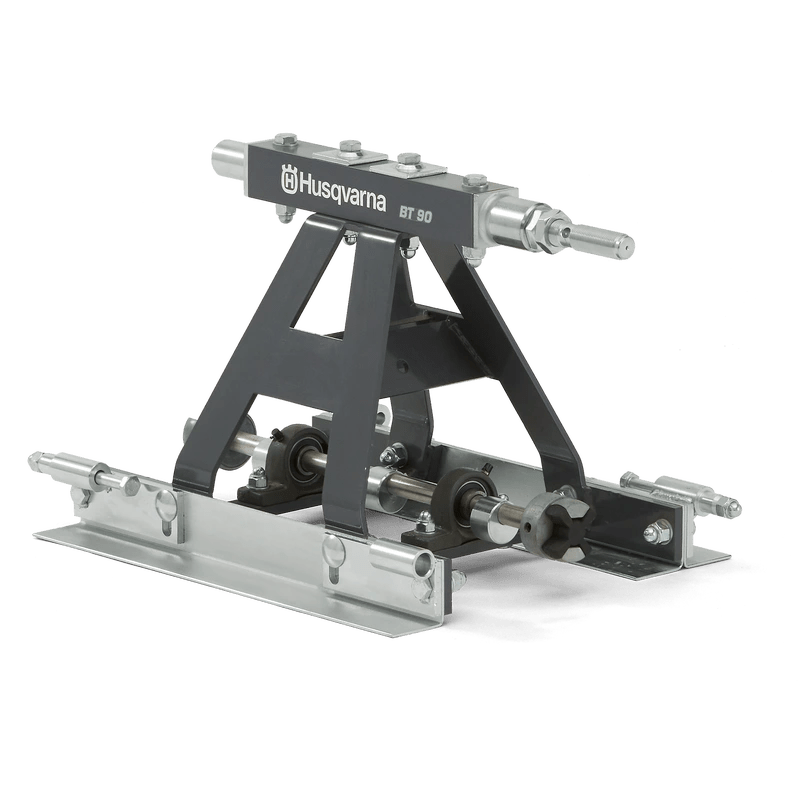

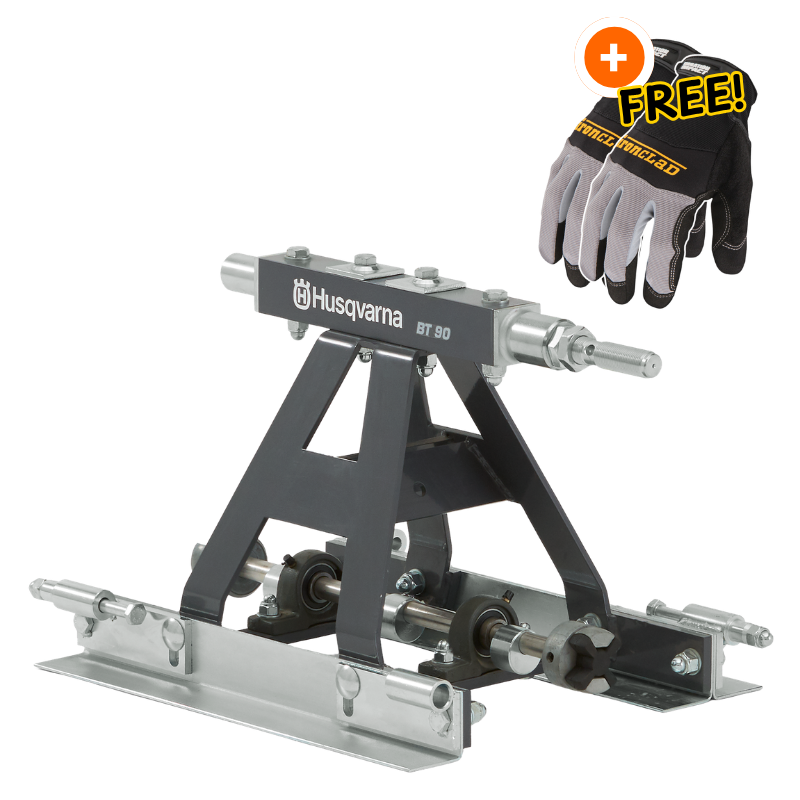

Husqvarna BT 90 Gas/electric Screed Section | Truss Screed
Husqvarna BT 90 Gas/electric Screed Section | Truss Screed
HUSQVARNA CONSTRUCTION SKU: 967941104 Copied!
Related Accessories
Compatible Husqvarna Construction accessories:
Regular price
$1,489.00
Regular price
$1,495.00
Sale price
$1,489.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details
This modular screed section lets professional crews expand a BT 90 setup for wide slab pours, bridge decks, runways and industrial floors. It helps level, compact and finish large concrete bays with consistent vibration across the span.
- Extend working width to match pour size without changing screed systems.
- Maintain consistent strike-off and consolidation across large form-riding applications.
- Support multi-site fleet flexibility with a sectional, configurable screed setup.
- Improve crew productivity on large, repeat pours where straightness and output matter.
This is a manual section for use with compatible BT 90 gas or electric systems; it does not operate as a standalone powered unit.
Product Specification
Specifications
Power source
Manual
Packaging length (Calc)
45.276 in
Packaging width (Calc)
19.685 in
Packaging height (Calc)
19.685 in
Article gross weight (Calc)
66.139 lbs
Warranty
1 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts
CROWN INVERT BRACKET - ELECTRIC / PETROL 25 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CLAMP | 594817801 | 2 | |||
| 2NUT | 595512501 | 1 | M20L DIN 934 8 FZB Left hand thread | ||
| 3JOINT | 595526101 | 1 | |||
| 4WASHER | 595165801 | 1 | 12.4x26x6 | ||
| 5WASHER | 595165901 | 1 | 12.4x26x3 | ||
| 6BAR | 595165401 | 3 | |||
| 7NUT | 595165701 | 1 | |||
| 8SHAFT | 595522401 | 1 | |||
| 9BELLOWS | 595202301 | 1 | |||
| 10SCREW | 595110301 | 6 | M12x35 ISO4017 8.8 A3K | ||
| 11LOCKING PIN | 595467101 | 2 | 3.5x90 | ||
| 12SCREW | 595164001 | 1 | |||
| 13SCREW | 595165601 | 1 | Left hand thread | ||
| 14HOLDER | 595197901 | 2 | |||
| 15GUIDE | 595165301 | 2 | |||
| 16AXLE | 595153701 | 2 | |||
| 17GUIDE | 595165201 | 2 | |||
| 18NUT | 594392201 | 4 | M24x2 DIN439B | ||
| 19WASHER | 595113401 | 12 | M12 ISO7089 200HV A2K | ||
| 20BAR | 595165501 | 3 | |||
| 21SCREW | 594285801 | 2 | M12x130 ISO4014 8.8 A3K | ||
| 22NUT | 594287601 | 12 | M12 DIN986 FZB | ||
| 23SCREW | 595347001 | 2 | M10x10 ISO4029 45H | ||
| 24HEXAGON NUT | 598513901 | 1 | M20 ISO4032 8 A3K | ||
| 25BRACKET | 598202901 | 1 | Crown invert bracket for electric and gasoline sections |
DECALS 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 577469001 | 1 | |||
| 2DECAL | 596446201 | 1 | |||
| 3LABEL | 595480001 | 1 | |||
| 4DECAL | 596636901 | 1 | |||
| 5LABEL | 594660201 | 1 | |||
| 6LABEL | 595138501 | 1 | |||
| 7DECAL | 596761201 | 2 | |||
| 7DECAL | 596761301 | 2 |
ELECTRIC WINCH SET 5 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BOX | 595477901 | 1 | |||
| 2CABLE | 595525501 | 1 | |||
| 3CABLE | 595525601 | 1 | |||
| 4CABLE | 594247701 | 1 | |||
| 5WINCH | 594710901 | 1 | Electric winches set |
EXTENSION 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BOLT | 595457501 | 3 | M12x360 | ||
| 2BAR | 595166001 | 2 | |||
| 3BAR | 595166101 | 1 | |||
| 4HOLDER | 598200701 | 1 | |||
| 5HOLDER | 598200801 | 1 | |||
| 6TUBE | 595166201 | 3 | |||
| 7SPACER | 595166301 | 3 | |||
| 8SCREW | 595110301 | 4 | M12x35 ISO4017 8.8 A3K | ||
| 9NUT | 595112701 | 10 | M12 ISO7040 8 A3K | ||
| 10WASHER | 595113401 | 14 | M12 ISO7089 200HV A2K | ||
| 11EXTENSION | 594860502 | 1 | 0.5 m extension |
EXTRA HAND WINCH 13 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1AXLE | 594393501 | 1 | |||
| 2CABLE | 594394801 | 1 | 30 m | ||
| 3SHACKLE | 594696501 | 2 | |||
| 4NUT | 595352301 | 2 | M8 ISO7040 8 A2K | ||
| 5LOCK NUT | 594123101 | 4 | M10 ISO7040 8 A2K s16 | ||
| 6WASHER | 595113301 | 3 | M10 ISO7089 200HV A2K | ||
| 7HOLDER | 595443301 | 1 | |||
| 8SCREW | 595033401 | 2 | M8x25 ISO4017 8.8 A2K | ||
| 9SCREW | 595071101 | 3 | M10x25 ISO4017 8.8 A3K | ||
| 10HOOK | 594498001 | 1 | |||
| 11HOLDER | 595444401 | 1 | |||
| 12BOLT | 594118501 | 1 | M10x30 ISO4017 8.8 A3K | ||
| 13WINCH | 596864401 | 1 | Extra hand winch |
FREE END SECTION 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 594285801 | 1 | M12x130 ISO4014 8.8 A3K | ||
| 2NUT | 594287601 | 1 | M12 DIN986 FZB | ||
| 3HANDLE | 594379001 | 2 | |||
| 4NUT | 594392201 | 1 | M24x2 DIN439B | ||
| 5NUT | 594392801 | 8 | M10 DIN986 FZB | ||
| 7FRAME | 598768601 | 1 | |||
| 8HANDLE | 595163901 | 2 | |||
| 9AXLE | 594393501 | 1 | |||
| 10CABLE | 594394801 | 1 | |||
| 11SCREW | 595071101 | 8 | M10x25 ISO4017 8.8 A3K | ||
| 12WASHER | 595113301 | 8 | M10 ISO7089 200HV A2K | ||
| 13HOOK | 594498001 | 1 | |||
| 14SLEEVE | 595203101 | 2 | |||
| 15SHACKLE | 594696501 | 1 | |||
| 16COVER | 595277001 | 1 | |||
| 18RIVET | 595449301 | 4 | 3.2x9 | ||
| 19PLUG | 595166601 | 1 | Pneumatic units only |
OUTRIGGER 13 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1NUT | 594287601 | 6 | M12 DIN986 FZB | ||
| 2NUT | 594392801 | 2 | M10 DIN986 FZB | ||
| 3DRUM | 595166401 | 2 | |||
| 4HOLDER | 598200901 | 1 | |||
| 5HOLDER | 595197801 | 2 | |||
| 6HOSE | 595166501 | 2 | 245 mm , 9.25 in. | ||
| 7TUBE | 595162301 | 2 | |||
| 8SCREW | 595071101 | 2 | M10x25 ISO4017 8.8 A3K | ||
| 9SCREW | 595345301 | 2 | M12x25 ISO4017 8.8 A3K | ||
| 10BOLT | 594119001 | 8 | M12x30 ISO4017 8.8 A3K | ||
| 11WASHER | 595113301 | 2 | M10 ISO7089 200HV A2K | ||
| 12WASHER | 595113401 | 10 | M12 ISO7089 200HV A2K | ||
| 13OUTRIGGER | 594860602 | 1 | Outrigger |
SCREED SECTIONS 0.5M - ELECTRIC / PETROL 27 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 595054601 | 4 | M10x40 ISO4014 8.8 A3K | ||
| 2SCREW | 595887601 | 2 | M12x70 ISO4014 8.8 A3K | ||
| 3SCREW | 595345501 | 2 | M12x80 ISO4014 8.8 A3K | ||
| 4SCREW | 594285801 | 2 | M12x130 ISO4014 8.8 A3K | ||
| 5SCREW | 594380601 | 3 | M8x20 ISO4029 45H | ||
| 6SCREW | 594392701 | 2 | M10x20 ISO4029 45H | ||
| 7SCREW | 594792801 | 4 | M12x45 DIN 603 8.8 A3K | ||
| 8NUT | 594392201 | 2 | M24x2 DIN 439B | ||
| 9WASHER | 595113301 | 4 | M10 ISO7089 200HV A2K | ||
| 10WASHER | 595113401 | 16 | M12 ISO7089 200HV A2K | ||
| 11NUT | 594287601 | 14 | M12 DIN986 FZB | ||
| 12ECCENTRIC | 594380501 | 3 | |||
| 13COUPLING | 594391901 | 2 | |||
| 14SLEEVE | 594392001 | 1 | |||
| 15SCREW | 594392101 | 1 | |||
| 16CROSSBAR | 594392301 | 1 | |||
| 17HOLDER | 594392401 | 1 | |||
| 18HOLDER | 594392501 | 1 | |||
| 19NUT | 594392801 | 4 | M10 DIN986 FZB | ||
| 21HOLDER | 598202401 | 1 | |||
| 22BAR | 595201501 | 3 | |||
| 23SHAFT | 595201601 | 1 | |||
| 24TUBE | 595201701 | 1 | |||
| 26PLATE | 594689101 | 2 | |||
| 27PLATE | 594689001 | 2 | |||
| 28WASHER | 594691901 | 2 | |||
| 29BEARING | 594681001 | 2 | UCP204 |
SCREED SECTIONS 0.75M - ELECTRIC / PETROL 27 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 595054601 | 4 | M10x40 ISO4014 8.8 A3K | ||
| 2BOLT | 594119001 | 4 | M12x30 ISO4017 8.8 A3K | ||
| 3SCREW | 595887601 | 2 | M12x70 ISO4014 8.8 A3K | ||
| 4SCREW | 595345501 | 2 | M12x80 ISO4014 8.8 A3K | ||
| 5SCREW | 594285801 | 2 | M12x130 ISO4014 8.8 A3K | ||
| 6SCREW | 594380601 | 4 | M8x20 ISO4029 45H | ||
| 7SCREW | 594392701 | 2 | M10x20 ISO4029 45H | ||
| 8SCREW | 594792801 | 4 | M12x45 DIN 603 8.8 A3K | ||
| 9NUT | 594392201 | 2 | M24x2 DIN 439B | ||
| 10WASHER | 595113301 | 4 | M10 ISO7089 200HV A2K | ||
| 11WASHER | 595113401 | 20 | M12 ISO7089 200HV A2K | ||
| 12NUT | 594287601 | 18 | M12 DIN986 FZB | ||
| 13ECCENTRIC | 594380501 | 4 | |||
| 14COUPLING | 594391901 | 2 | |||
| 15SLEEVE | 594392001 | 1 | |||
| 16SCREW | 594392101 | 1 | |||
| 17CROSSBAR | 594392301 | 1 | |||
| 18HOLDER | 594392401 | 1 | |||
| 19HOLDER | 594392501 | 1 | |||
| 20NUT | 594392801 | 4 | M10 DIN986 FZB | ||
| 23ANGLE BRACKET | 595477001 | 3 | |||
| 24SHAFT | 595201301 | 1 | |||
| 25TUBE | 595201401 | 1 | |||
| 27PLATE | 594689101 | 2 | |||
| 28PLATE | 594689001 | 2 | |||
| 29WASHER | 594691901 | 2 | |||
| 30BEARING | 594681001 | 2 | UCP204 |
SCREED SECTIONS 1M - ELECTRIC / PETROL 30 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 594285801 | 2 | M12x130 ISO4014 8.8 A3K | ||
| 2SCREW | 594792801 | 4 | M12x45 DIN 603 8.8 A3K | ||
| 3NUT | 594287601 | 20 | M12 DIN986 FZB | ||
| 4ECCENTRIC | 594380501 | 4 | |||
| 5SCREW | 594380601 | 4 | M8x20 ISO4029 45H | ||
| 6COUPLING | 594391901 | 2 | |||
| 7SLEEVE | 594392001 | 1 | |||
| 8SCREW | 594392101 | 1 | |||
| 9NUT | 594392201 | 2 | M24x2 DIN 439B | ||
| 10CROSSBAR | 594392301 | 1 | |||
| 11HOLDER | 594392401 | 1 | |||
| 12HOLDER | 594392501 | 1 | |||
| 14SCREW | 594392701 | 2 | M10x20 ISO4029 45H | ||
| 15NUT | 594392801 | 6 | M10 DIN986 FZB | ||
| 16BAR | 594391701 | 3 | |||
| 17SHAFT | 594391801 | 1 | |||
| 18TUBE | 598200501 | 1 | |||
| 19SCREW | 595054601 | 4 | M10x40 ISO4014 8.8 A3K | ||
| 20SCREW | 595887601 | 2 | M12x70 ISO4014 8.8 A3K | ||
| 21BOLT | 594119001 | 4 | M12x30 ISO4017 8.8 A3K | ||
| 22SCREW | 595345501 | 2 | M12x80 ISO4014 8.8 A3K | ||
| 23WASHER | 595113301 | 6 | M10 ISO7089 200HV A2K | ||
| 24WASHER | 595113401 | 22 | M12 ISO7089 200HV A2K | ||
| 26BEARING | 594681001 | 3 | UCP204 | ||
| 27PLATE | 594689001 | 2 | |||
| 28PLATE | 594689101 | 2 | |||
| 29WASHER | 594691901 | 2 | |||
| 30SCREW | 595345301 | 2 | |||
| 31SUPPORT | 598200402 | 1 | |||
| 32SCREW | 594118601 | 2 |
SCREED SECTIONS 2M - ELECTRIC / PETROL 27 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 594285801 | 2 | M12x130 ISO4014 8.8 A3K | ||
| 2SCREW | 594792801 | 4 | M12x45 DIN 603 8.8 A3K | ||
| 3NUT | 594287601 | 32 | M12 DIN986 FZB | ||
| 4ECCENTRIC | 594380501 | 8 | |||
| 5SCREW | 594380601 | 8 | M8x20 ISO4029 45H | ||
| 6COUPLING | 594391901 | 2 | |||
| 7SLEEVE | 594392001 | 1 | |||
| 8SCREW | 594392101 | 1 | |||
| 9NUT | 594392201 | 2 | M24x2 DIN 439B | ||
| 10CROSSBAR | 594392301 | 1 | |||
| 11HOLDER | 594392401 | 1 | |||
| 12HOLDER | 594392501 | 1 | |||
| 14SCREW | 594392701 | 2 | M10x20 ISO4029 45H | ||
| 15NUT | 594392801 | 8 | M10 DIN986 FZB | ||
| 16BAR | 594392901 | 3 | |||
| 17SHAFT | 594393001 | 1 | |||
| 19SCREW | 595054601 | 8 | M10x40 ISO4014 8.8 A3K | ||
| 20SCREW | 595110301 | 4 | M12x35 ISO4017 8.8 A3K | ||
| 21SCREW | 595887601 | 2 | M12x70 ISO4014 8.8 A3K | ||
| 22BOLT | 594119001 | 12 | M12x30 ISO4017 8.8 A3K | ||
| 23SCREW | 595345501 | 4 | M12x80 ISO4014 8.8 A3K | ||
| 24WASHER | 595113301 | 8 | M10 ISO7089 200HV A2K | ||
| 25WASHER | 595113401 | 34 | M12 ISO7089 200HV A2K | ||
| 27BEARING | 594681001 | 4 | UCP204 | ||
| 28PLATE | 594689001 | 2 | |||
| 29PLATE | 594689101 | 2 | |||
| 30WASHER | 594691901 | 4 |
SCREED SECTIONS 3M - ELECTRIC / PETROL 28 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 594285801 | 2 | M12x130 ISO4014 8.8 A3K | ||
| 2SCREW | 594792801 | 4 | M12x45 DIN 603 8.8 A3K | ||
| 3NUT | 594287601 | 46 | M12 DIN986 FZB | ||
| 4ECCENTRIC | 594380501 | 12 | |||
| 5SCREW | 594380601 | 12 | M8x20 ISO4029 45H | ||
| 6COUPLING | 594391901 | 2 | |||
| 7SLEEVE | 594392001 | 1 | |||
| 8SCREW | 594392101 | 1 | |||
| 9NUT | 594392201 | 2 | M24x2 DIN 439B | ||
| 10CROSSBAR | 594392301 | 1 | |||
| 11HOLDER | 594392401 | 1 | |||
| 12HOLDER | 594392501 | 1 | |||
| 14SCREW | 594392701 | 2 | M10x20 ISO4029 45H | ||
| 15NUT | 594392801 | 12 | M10 DIN986 FZB | ||
| 16BAR | 594393101 | 3 | |||
| 17SHAFT | 594393201 | 1 | |||
| 18TUBE | 595197401 | 1 | |||
| 19SCREW | 595054601 | 12 | M10x40 ISO4014 8.8 A3K | ||
| 20SCREW | 595110301 | 8 | M12x35 ISO4017 8.8 A3K | ||
| 21SCREW | 595887601 | 2 | M12x70 ISO4014 8.8 A3K | ||
| 22BOLT | 594119001 | 20 | M12x30 ISO4017 8.8 A3K | ||
| 23SCREW | 595345501 | 6 | M12x80 ISO4014 8.8 A3K | ||
| 24WASHER | 595113301 | 12 | M10 ISO7089 200HV A2K | ||
| 25WASHER | 595113401 | 48 | M12 ISO7089 200HV A2K | ||
| 27BEARING | 594681001 | 6 | UCP204 | ||
| 28PLATE | 594689001 | 2 | |||
| 29PLATE | 594689101 | 2 | |||
| 30WASHER | 594691901 | 6 |
SECTIONS KIT - ELECTRIC / GASOLINE 7 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BEAM | 595165001 | 1 | |||
| 2COUPLING | 594391901 | 1 | |||
| 3CROSSBAR | 594392301 | 4 | |||
| 4SCREW | 594392701 | 1 | M10x20 ISO4029 45H | ||
| 5SLEEVE | 594392001 | 1 | |||
| 6BEARING | 594681001 | 2 | UCP204 | ||
| 7SCREW | 594392101 | 1 |
SKATE 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BLADE | 595499201 | 1 | |||
| 2WASHER | 595036601 | 2 | M8 ISO7089 200HV A2K | ||
| 3WASHER | 595113601 | 2 | M8 DIN6796 FZB | ||
| 4SCREW | 595344301 | 2 | M8x30 ISO4017 8.8 A3K | ||
| 5HOLDER | 595499101 | 1 | |||
| 6SCREW | 595054601 | 2 | M10x40 ISO4014 8.8 A3K | ||
| 7WASHER | 595113301 | 2 | M10 ISO7089 200HV A2K | ||
| 8NUT | 594392801 | 2 | M10 DIN986 FZB | ||
| 9SCREW | 594118101 | 2 | M8x60 ISO4014 8.8 A3K | ||
| 10NUT | 595035701 | 2 | M8 DIN934 8 FZB | ||
| 11SKATE | 595499103 | 1 | Skate, complete |
Document Downloads
Compatable Accessories
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
