Product Details

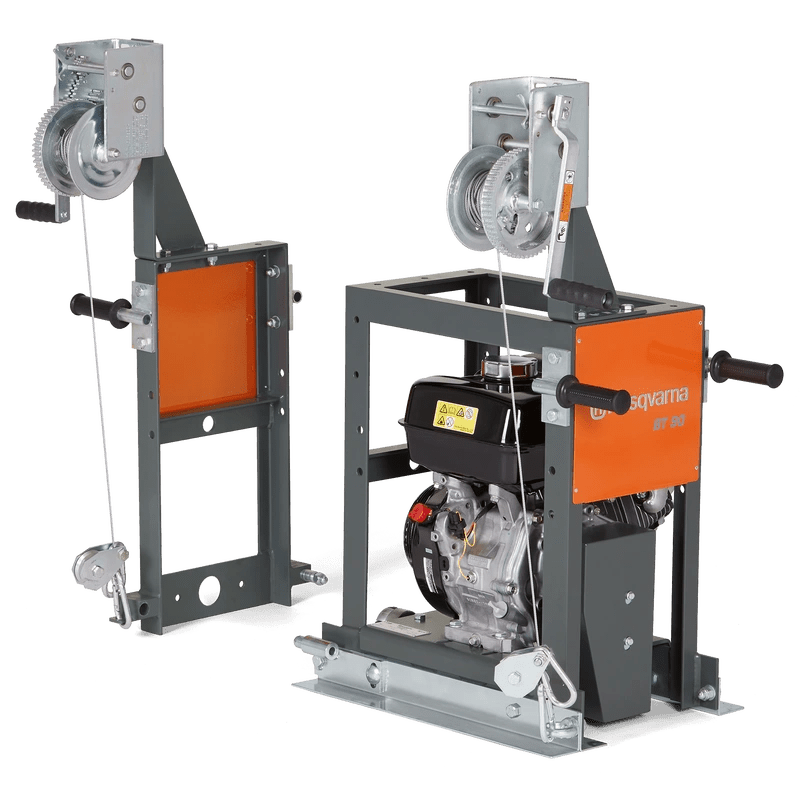

HUSQVARNA TRUSS SCREED - THE SUPERIOR FLOOR FINISHING TOOL
The Husqvarna BT 90 Gas Truss Screed is a versatile workhorse, capable of managing surfaces up to 65 feet wide with precision. This powerhouse tool is perfect for compacting, leveling, and finishing floors, runways, and bridges. Easy for one operator to assemble and adjust, it's designed to make your workday more efficient.
With its 6.7 horsepower GX270 engine, you can trust in the Husqvarna BT 90's robust performance. Its pack weight of 208.557 lbs and dimensions of 43.307 inches by 47.244 inches by 31.496 inches make it a compact and manageable tool for any construction task. Its petrol power source ensures reliable and consistent operation throughout the day.
- 6.7 horsepower GX270 engine for robust performance
- Capable of managing surfaces up to 65 feet wide
- Compact and manageable size (43.307" x 47.244" x 31.496")
- Petrol power source for reliable operation
- Easy assembly and adjustment by a single operator
Product Specification
Specifications
Related Equipment
Related Equipment
Service & Maintenance Parts
CENTRIFUGAL CLUTCH 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SNAP RING | 595114001 | 1 | D35x1.5 DIN471 | ||
| 2SNAP RING | 595145001 | 1 | D62x2 DIN472 | ||
| 3FLANGE | 595162001 | 1 | |||
| 4SPRING | 594372201 | 2 | |||
| 5WEIGHT | 594372301 | 2 | |||
| 6LINING | 594372401 | 2 | |||
| 7BALL BEARING | 597291201 | 1 | 6007 2RS | ||
| 8SPACER | 595164101 | 1 | |||
| 9CLUTCH | 595164201 | 1 | |||
| 10AXLE | 595474201 | 1 | |||
| 11SOCKET | 595347801 | 2 | M6?10 DIN912 8.8 FZB |
DECALS 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 577469001 | 1 | |||
| 2DECAL | 596446201 | 1 | |||
| 3LABEL | 595480001 | 1 | |||
| 4DECAL | 596636901 | 1 | |||
| 5LABEL | 594660201 | 1 | |||
| 6LABEL | 595138501 | 1 | |||
| 7DECAL | 596761201 | 2 | |||
| 7DECAL | 596761301 | 2 |
DRIVE UNIT - PETROL 41 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 2SCREW | 596071101 | 2 | M12x35 DIN603 8.8 A3K | ||
| 3SCREW | 594285801 | 1 | M12x130 ISO4014 8.8 A3K | ||
| 4NUT | 594287601 | 8 | M12 DIN986 FZB | ||
| 5ENGINE | 594352301 | 1 | Honda GX270 UT2 SWS4 SD NH1 | ||
| 6HANDLE | 594379001 | 2 | |||
| 7SCREW | 594380601 | 2 | M8x20 ISO4029 45H | ||
| 8WASHER | 594618901 | 1 | |||
| 9COUPLING | 594391901 | 1 | |||
| 10NUT | 594392201 | 3 | M24x2 DIN439B | ||
| 11CROSSBAR | 594392301 | 1 | |||
| 12SCREW | 595347101 | 1 | M10x20 ISO4029 45H | ||
| 13NUT | 594392801 | 16 | M10 DIN986 FZB | ||
| 15HANDLE | 595163901 | 2 | |||
| 16BAR | 594393601 | 3 | |||
| 17SHAFT | 594393701 | 1 | |||
| 18SCREW | 595164001 | 1 | |||
| 19PULLEY | 594393801 | 1 | |||
| 21BELT GUARD | 598202601 | 1 | |||
| 22HOLDER | 595460701 | 1 | |||
| 23CLUTCH | 594625001 | 1 | |||
| 24V-BELT | 594394001 | 2 | |||
| 25AXLE | 594394101 | 1 | |||
| 26CABLE | 594394801 | 1 | |||
| 28SCREW | 595465801 | 2 | M8x22 ISO4017 8.8 A3K | ||
| 29SCREW | 595071101 | 8 | M10x25 ISO4017 8.8 A3K | ||
| 30SCREW | 594118601 | 4 | M10x35 ISO4017 8.8 A3K | ||
| 31SCREW | 595054601 | 4 | M10x40 ISO4014 8.8 A3K | ||
| 32SCREW | 595345301 | 4 | M12x25 ISO4017 8.8 A3K | ||
| 33SCREW | 595287101 | 1 | M8x50 ISO4014 8.8 A2K | ||
| 34NUT | 595352301 | 2 | M8 ISO7040 8 A2K | ||
| 35WASHER | 595036601 | 2 | M8 ISO7089 200HV A2K | ||
| 36WASHER | 595113301 | 20 | M10 ISO7089 200HV A2K | ||
| 37WASHER | 595113401 | 8 | M12 ISO7089 200HV A2K | ||
| 39BEARING | 594681001 | 2 | UCP204 | ||
| 40HOOK | 594498001 | 1 | |||
| 41PLATE | 594689001 | 1 | |||
| 42PLATE | 594689101 | 1 | |||
| 43SHACKLE | 594696501 | 1 | |||
| 44NUT | 595460801 | 1 | |||
| 45COVER | 595277001 | 1 | |||
| 47RIVET | 595449301 | 4 | 3.2x9 |
DRIVE UNIT SERVICE KIT - ELECTRIC / GASOLINE 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 594394601 | 1 | |||
| 2COUPLING | 594391901 | 1 | |||
| 3CROSSBAR | 594392301 | 4 | |||
| 4SCREW | 595347101 | 1 | M10x20 ISO4029 45H | ||
| 5V-BELT | 594394001 | 4 | |||
| 6BEARING | 594681001 | 2 | UCP204 |
FREE END SECTION 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 594285801 | 1 | M12x130 ISO4014 8.8 A3K | ||
| 2NUT | 594287601 | 1 | M12 DIN986 FZB | ||
| 3HANDLE | 594379001 | 2 | |||
| 4NUT | 594392201 | 1 | M24x2 DIN439B | ||
| 5NUT | 594392801 | 8 | M10 DIN986 FZB | ||
| 7FRAME | 598768601 | 1 | |||
| 8HANDLE | 595163901 | 2 | |||
| 9AXLE | 594393501 | 1 | |||
| 10CABLE | 594394801 | 1 | |||
| 11SCREW | 595071101 | 8 | M10x25 ISO4017 8.8 A3K | ||
| 12WASHER | 595113301 | 8 | M10 ISO7089 200HV A2K | ||
| 13HOOK | 594498001 | 1 | |||
| 14SLEEVE | 595203101 | 2 | |||
| 15SHACKLE | 594696501 | 1 | |||
| 16COVER | 595277001 | 1 | |||
| 18RIVET | 595449301 | 4 | 3.2x9 | ||
| 19PLUG | 595166601 | 1 | Pneumatic units only |
SERVICE KIT - HONDA 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 594200401 | 1 | |||
| 2AIR FILTER | 594575101 | 1 | |||
| 3GASKET | 595048901 | 1 | |||
| 4ROPE | 595049101 | 1 | |||
| 5SPARK PLUG | 594544301 | 1 | |||
| 6GASKET | 594760301 | 1 |
